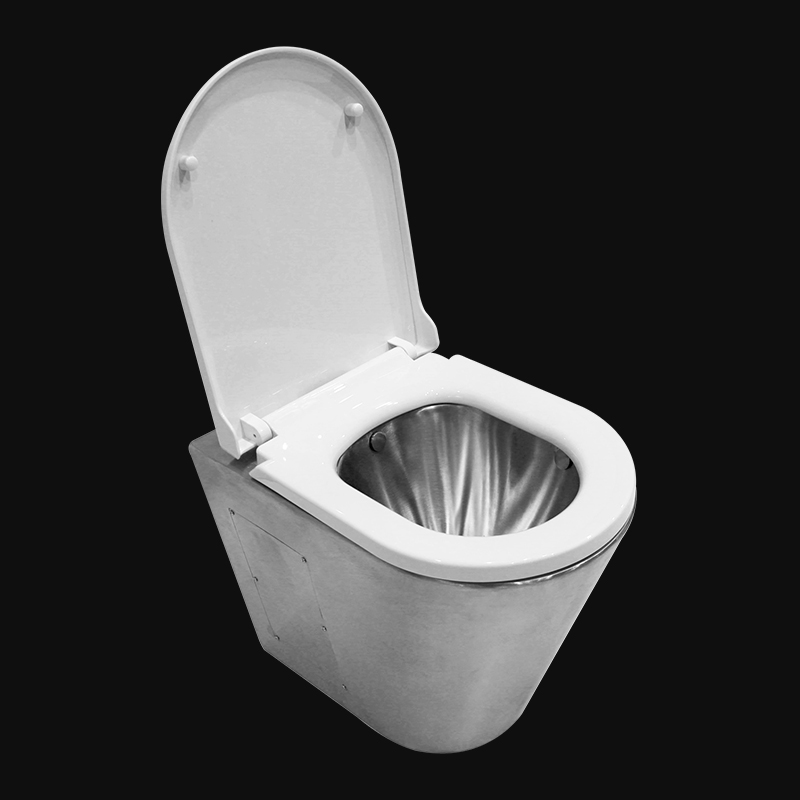

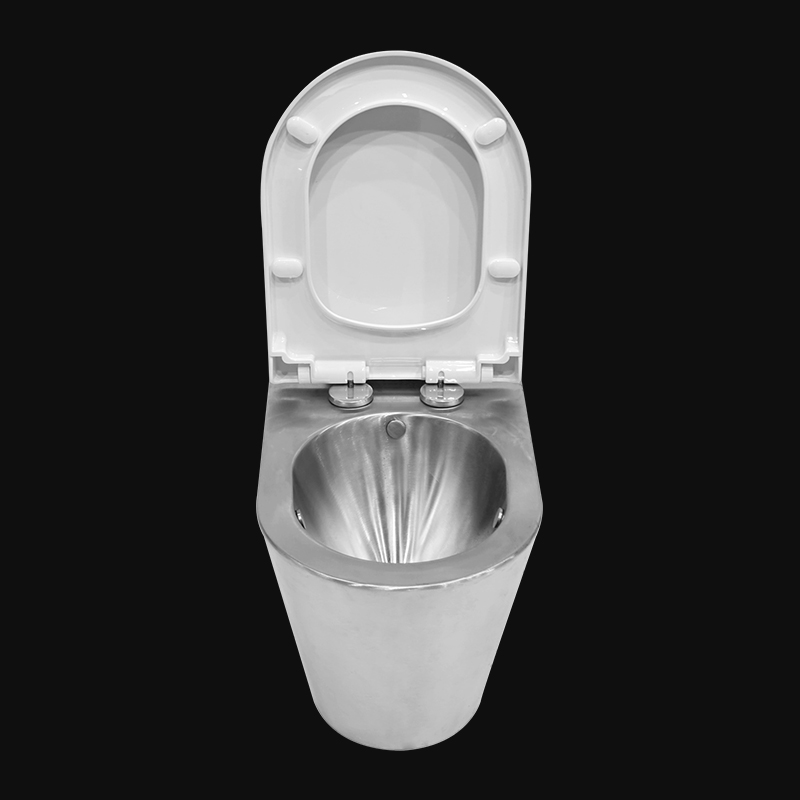

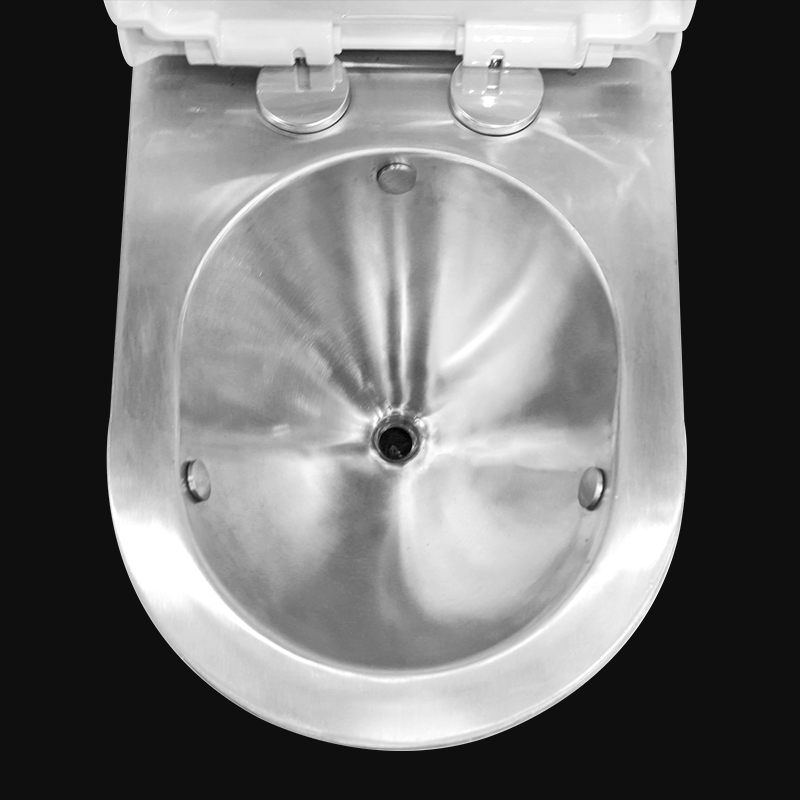

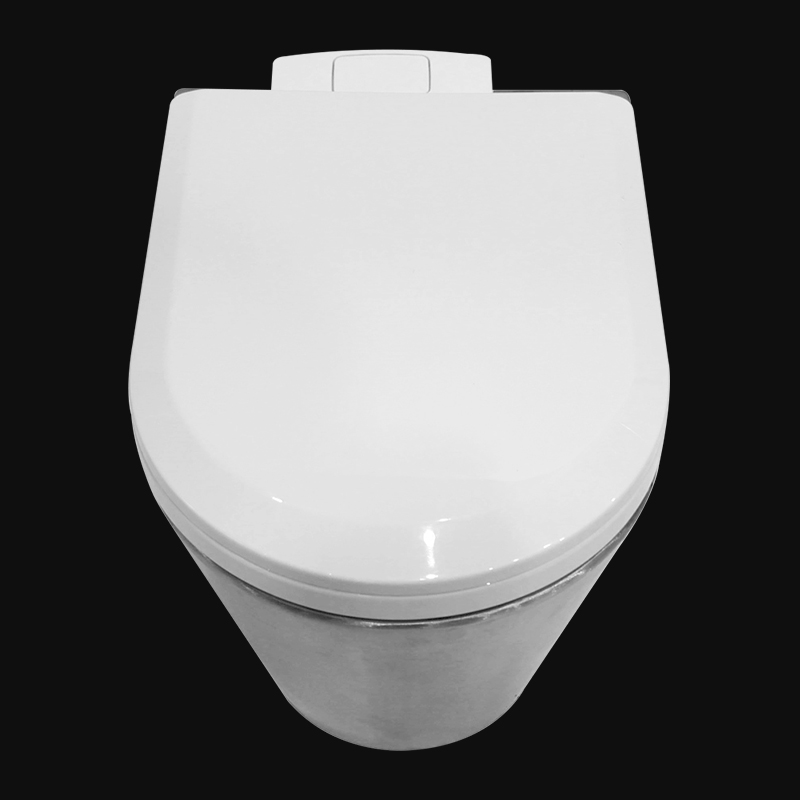

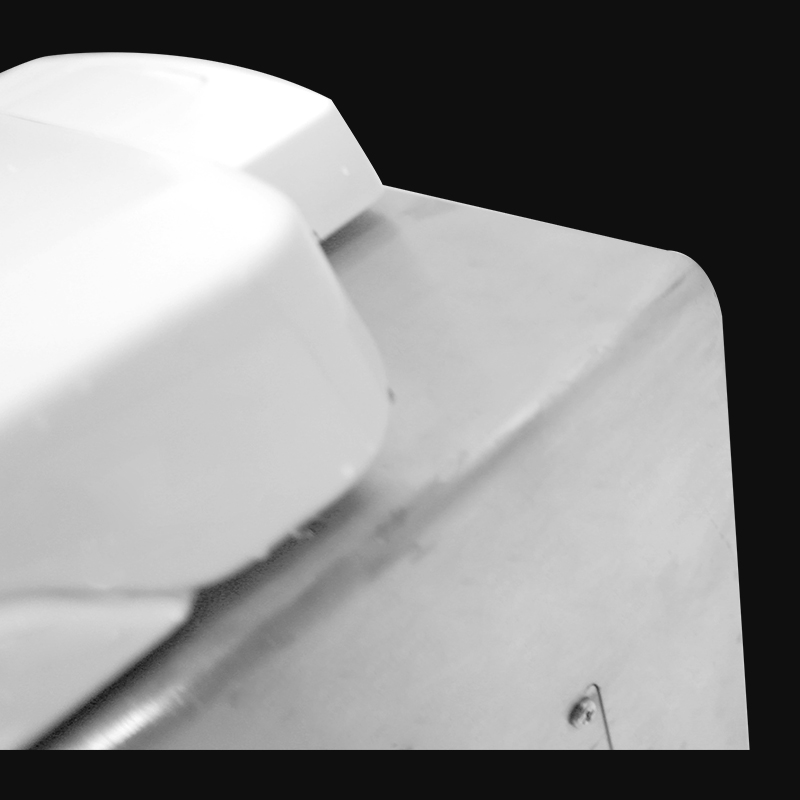

KUGE KG-JHSE01D vacuum toilet is developed for projects requiring water-saving sanitation systems and durable stainless steel restroom equipment. The toilet combines vacuum-assisted flushing technology with a compact floor-mounted structure, making it suitable for rail transport, marine facilities, mobile sanitation units, and industrial applications.
Manufactured from high-quality 304 stainless steel with a satin surface finish, the unit offers strong corrosion resistance and long-term durability under demanding operating conditions. Its low water consumption design helps reduce operational costs while maintaining effective waste removal performance.
The manual flush configuration also supports stable operation in environments with specialized vacuum systems.
Vacuum Flushing Technology
Vacuum-assisted flushing improves waste discharge efficiency while significantly reducing water consumption.
Ultra Low Water Consumption
Each flush uses only approximately 1.5 liters of water, supporting environmentally friendly sanitation systems.
Durable 304 Stainless Steel Structure
Constructed from corrosion-resistant stainless steel for long operational service life in demanding environments.
Manual Flush Operation
Reliable manual flushing system suitable for transportation and mobile sanitary facilities.
Compact Installation Design
Optimized dimensions allow installation in limited-space restroom environments.
Satin Surface Treatment
The satin finish provides a clean modern appearance while simplifying daily maintenance.
| Item | Specification |
|---|---|
| Product Name | Stainless Steel Vacuum Toilet |
| Product Model | KG-JHSE01D |
| Toilet Size | 510 × 365 × 400 mm (Without Cover) |
| Material | 304 Stainless Steel |
| Surface Finish | Satin |
| Working Pressure | -30 to -60 kPa |
| Water Pressure | ＞3.5 Bar |
| Water Consumption | 1.5L / Flush |
| Flushing Method | Manual |
| Detection Component | Vacuum Pressure Switch |
| Water Inlet | G1/2” Female Thread |
| Drain Outlet | Center 50mm |
| Installation Type | Floor Mounted |
| OEM/ODM | Available |
The KG-JHSE01D vacuum toilet is designed to improve operational efficiency in water-sensitive and mobile sanitation systems.
Key functional advantages include:
Reduced water consumption
Efficient vacuum-assisted discharge
Strong corrosion resistance
Compact footprint for confined spaces
Reliable manual flushing control
Easy cleaning and maintenance
The stainless steel structure also helps improve durability in high-frequency usage environments.
Railway Toilet Systems
Suitable for passenger trains and railway sanitation facilities requiring vacuum flushing technology.
Marine & Ship Sanitation
Applicable for vessels, offshore platforms, and marine restroom environments.
Mobile & Modular Restrooms
Ideal for prefabricated sanitary units and mobile toilet systems.
Industrial Facilities
Suitable for factories, temporary worksites, and industrial hygiene areas.
Remote Infrastructure Projects
Supports sanitation requirements in isolated or off-grid project locations.
304 stainless steel is widely used for transportation and industrial sanitary equipment because it offers:
Excellent corrosion resistance
Hygienic surface performance
Long-term structural stability
Easy maintenance
Resistance to moisture and harsh environments
These advantages make it ideal for vacuum sanitation systems operating under intensive conditions.
KUGE offers OEM & ODM customization services including:
SUS304 / SUS316 material selection
Vacuum system compatibility adjustments
Custom dimensions
Manual or automatic flushing options
Drainage outlet modifications
Surface finish customization
Marine and railway installation solutions
What is a vacuum toilet used for?
Vacuum toilets are commonly used in trains, ships, modular restrooms, and mobile sanitation systems where water efficiency is important.
How much water does the KG-JHSE01D use per flush?
The toilet uses approximately 1.5 liters of water per flush.
Is the toilet suitable for marine applications?
Yes. The 304 stainless steel construction and vacuum flushing system make it suitable for marine and offshore environments.
What flushing system does this model use?
The KG-JHSE01D uses a manual vacuum-assisted flushing system.
Can the product be customized?
Yes. KUGE supports OEM and ODM customization for project-specific requirements.
